WBZ600 Stabilized Soil Mixing Plant

Production capacity: 600t/h
control method:automatic/manual
>Total power: 170.5kw

Field of application: WBZ600 Stabilized Mixing Station can use raw lime, hydrated lime water content of 10-15%, soil, gravel, fly ash, cement and other raw materials to produce ash-stabilized base materials, cement stabilized gravel, compressible concrete and other basic materials.

E-Mail:jianxin@zzjxcorp.com

WhatsApp:0086-18437125333

Get a Quote Chat Online

The Jianxin brand WBZ600 Stabilized Soil Mixing Station production line adopts a forced continuous twin-shaft type in the form of agitation. It can mix gravel and stabilize soil and lime soil to stabilize soil. It is suitable for construction of highways, Class I highways, Class II highways, urban roads, airports, sports fields and other basic materials. It can use quicklime, hydrated lime (water content 10-15%), soil, Raw materials such as gravel, fly ash, and cement are used to produce base materials such as ash. Unlike common ram mixing plants, new users need special attention.
WBZ600 Stabilized Soil Mixing Station (mixing station) uses twin-shaft continuous linerless mixers for easy maintenance, even mixing and high production efficiency. The ingredients are electronically weighed or volume-measured, the measurement is accurate and reliable, and the ratio changes rapidly. The computer control system manages the entire process, with manual and automatic selection, convenient operation and good reliability. Speed adoption of international advanced frequency control or electromagnetic speed control will save energy, stepless speed, and fully guarantee the reliability of equipment operation. Intelligent turbine flowmeter for water supply, accurate calculation, intuitive display. Aggregate and finished material conveyor adopts seamless vulcanized joint ring tape or large angled wave rib belt, which is compact in structure, stable in operation, reliable in operation, not easy to deviate, and effectively improves the service life of the belt. Aggregate bins are modular or modular, flexible and suitable for different levels of demand.

Guiyang 400T Stabilized Soil Mixing Plant
Hubei 300T Stabilized Soil Mixing Plant
Jingdezhen 300T Stabilized Soil Mixing Plant
Lushan 600T Stabilized Soil Mixing Plant
Qi County 600T Stabilized Soil Mixing Plant
Shanxi 600T Stabilized Soil Mixing Plant

Project

Maximum productivity

Measurement method

Speed regulation mode

control mode

Quantify precision

Power

Weight

WBZ600

600t/h

Volume measurement

Computer measurement

frequency control

Electromagnetic speed regulation

automatic

Manual

aggregate
±3%（volume）、±2%（Electronics）

Powder
±2%（volume）、±1%（Electronics）

water
-1~2%

170.5kw

54t

01
Mixer system
The main machine adopts a no-liners structure, which greatly increases the gap between the mixing blade and mixer drum;When the mixer working, a non-moving mixed material layer will be formed in the gap, which will stay on the drum, act as a lining board, protecting the mixer drum from abrasion.
03
Batching system
Aggregate batching machine of WBZ600 stabilized soil mixing plant characteristics is as following:After aggregate storage hopper discharged, the raw material is conveyed by the flat belt conveyor. Electromagnetic speed regulating belt conveyor can realize stepless speed regulation.
03
Convey system
Screw conveyors can transport cement, fly ash, mineral powder, dry sand, etc., and are widely used in chemical, building materials, food, metallurgy, power and other industries.Belt conveyor is an ideal high-efficiency continuous material convey equipment. reliable operation.
04

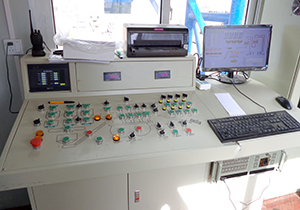

Control System
Control system adopt Domestic famous brand electronic accessories, using electromagnetic (frequency conversion) speed regulation method.WBZ600 stabilized cement soil mixing plant adopts computer control method, which automatically or manually modes are all availiable.
05
Cement Silo
Cement silo include three types: Bolted cement silo, Welding cement silo, and Horizontal cement silo.Integral cement silo has a cylindrical structure, the bottom is supported by four round steel pipe legs to support the entire silo body.
06
Dust clean system
There is an axial fan set on top of the pulse dust collector. When the axial fan works, negative pressure is formed inside and outside the dust filter bag. Air passes through the pores of the dust bag and is discharged into the atmosphere through the axial fan. The dust is blocked by the dust bag and attached to the dust bag.
